Krupp AI Vehicle Tracking System

The Krupp AI Vehicle Tracking System, powered by the advanced NVIDIA® Jetson Orin™ NX 16GB, delivers exceptional AI-driven traffic monitoring and analytics directly at the edge. Designed specifically for real-time applications, this compact, fanless solution accurately detects and analyzes critical road incidents, including traffic congestion, collisions, vehicles traveling against traffic flow, road obstacles, and smoke detection.

Features

  • Superior AI Performance: Featuring NVIDIA® Jetson Orin™ NX with up to 100 TOPS, enabling powerful GPU-accelerated AI processing.
  • Robust Connectivity: Equipped with 1 HDMI, 1 GbE LAN, 1 GbE PoE (15W) ideal for connecting AI cameras, and 2 USB ports for versatile peripheral integration.
  • Built for Smart Cities: Tailored specifically for edge AI applications in smart city environments, offering real-time insights for effective urban traffic management.
  • Reliable and Durable: Operates effectively across a broad temperature range from -25°C to +50°C, suitable for diverse environmental conditions.
  • Semi-Outdoor Ready: IP42-rated protection ensures stable performance in semi-outdoor installations.
  • Long-term Availability: NVIDIA® Jetson Orin™ NX supported and available through to 2030, providing a stable, future-proof investment.

The Krupp AI Vehicle Tracking System is the ultimate choice for municipalities, urban planners, and integrators seeking a dependable, AI-powered solution to enhance traffic safety and efficiency.



Model Number

Krupp AI VTS

Standard Color

Silver

Construction

Aluminum extrusion and heavy-duty steel, IP40 (IP42 by optional cover kit)

AI Accelerator

NVIDIA® Jetson Orin™ NX (up to 100 TOPS)

CPU

16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3

8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

GPU

1024-core NVIDIA Ampere GPU with 32 Tensor Cores

System Memory

16GB: 16GB 128-bit LPDDR5 onboard

8GB: 8GB 128-bit LPDDR5 onboard

Carrier Board

SBC87903

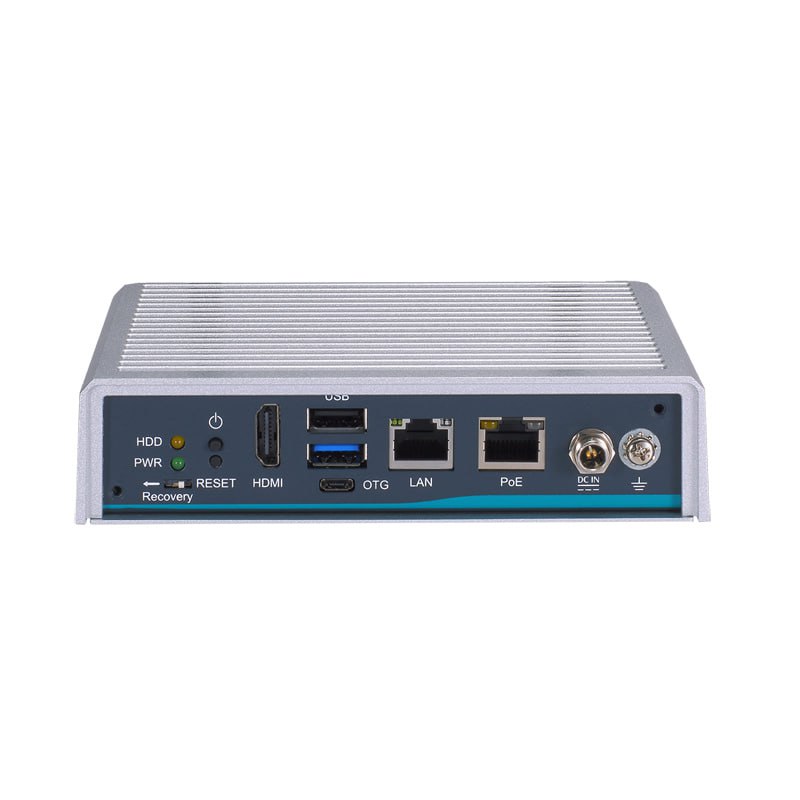

System I/O Outlet

1 x HDMI 2.1 with 4K2K supported

1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ NX)

1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)

1 x USB 3.2 Gen2, 1 x USB 2.0

1 x Micro USB for image flash

1 x Recovery switch

1 x Reset button

1 x Power button

1 x 12 VDC power input connector

2 x SMA-type antenna connector

Watchdog Timer

Built-in Orin NX

Storage

1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x SIM slot

System Indicator

1 x Green LED for system power-on

1 x Yellow LED for M.2 storage

Power Supply

12 VDC screw type

Operating Temperature

-25°C to +50°C (-13°F to +122°F) (power mode: 25W)

Humidity

0% - 95%, non-condensing

Vibration Endurance

3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)

Dimensions

148.6 mm (5.85") (W) x 129.8 mm (5.11") (D) x 34.6 mm (1.36") (H)

Weight (net/gross)

1 kg (2.20 lb)/1.6 kg (3.52 lb)

Certifications

CE, FCC Class A

OS Support

A Linux Ubuntu 20.04 or later

(*) Design and specifications are subject to change for product improvements without prior notice
