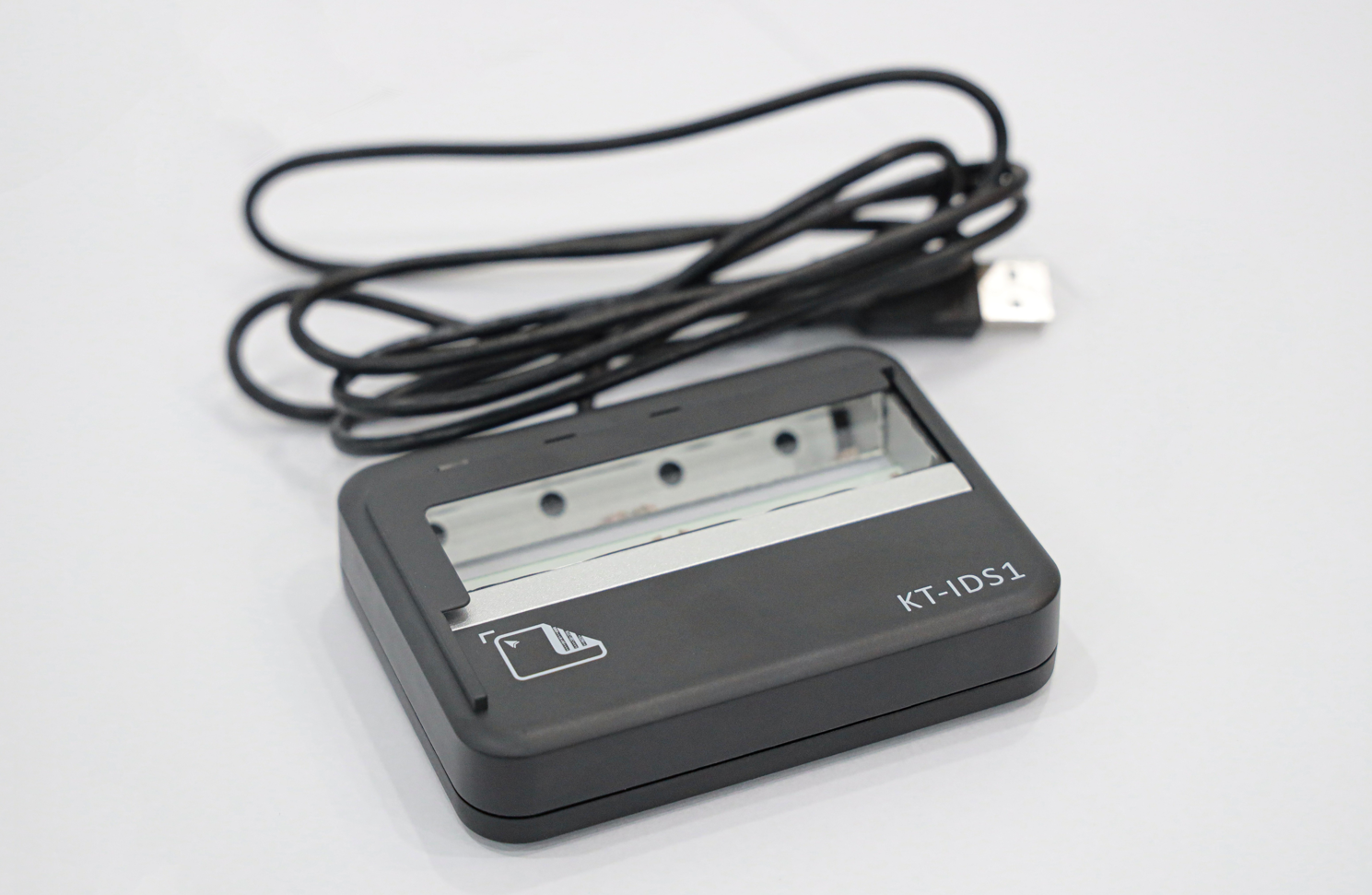

KT-ID S1 - e-Document Verification Without Movement
Krupp announces a technology breakthrough with its KT-ID S1, the smallest professional e-document reader in the world.
Features:
| • | Dedicated to identity documents |
| • | Scans MRZ and reads RFID chip without movement |
| • | Support ICAO & IAS standards |
| • | Fast reading |
| • | Reduced footprint |
| • | USB powered |
| • | Automatic detection |
Specifications
| General | |
| Dimensions | 98 x 72 x 24 (mm) for KT-IDS1 |
| Temperature | In operation: 0℃ to +50℃ Storage: -40℃ to +80℃ |
| Communication | USB 2.0 full speed (12Mbps) |
| Host operating systems | Windows, MacOS, Linux, Android |
| MRZ Scanner | |
| MRZ Lines | 1 line: IDL, CAN, … 3 lines: eID |
| Font type | OCR B |
| Contactless Reader | |
| Supported protocols | ISO 14443 Part 1 to 4, type A/B – T=CL and Mifare All Mifare products: Ultralight, 1K, 4K, Plus, DESFire EV1, Smart MX, … |
| NFC support | Card Reader/Write mode |
| Speed | Baudrate up to 848 kbps |
| Communication APIs | Custom CCID library (Android) CCID compliant (Windows, MacOS, Linux) PC/SC 2.01 compliant (Windows, MacOS, Linux) |
| Firmware | Support for RF configuration Pass-through command to reach protocol lower layer Field upgradable |
| Contact Card Reader | |
| Supported protocols | ISO 7816 – T=0 and T=1 5V, 3V, 1.8V, ISO 7816 Class A/B/C |
| Speed | Baudrate up to 230 kbps Clock: Up to 10 Mhz |
| Communication APIs | Custom CCID library (Android) CCID compliant (Windows, MacOS, Linux) PC/SC 2.01 compliant (Windows, MacOS, Linux) |
| Fingerprint Sensor | |
| Image quality | Standard FBI PIV / FBI Mobile ID FAP 20 |
| Sensor type | Optical |
| Resolution | 500 ppi |
