Key Features
| • | Reusable cable locking mechanism. |
| • | Strong magnetic applications make it easy to attach to steel containers and avoid vibration. |
| • | GPS and GSM chips are embedded for location and communication. |
| • | Powered by rechargeable lithium batteries capable of lasting up to 20 days. |
| • | Material: Engineering plastic (anti-collision). |
| • | Supports 9 alarms: steel string cut, swipe RFID tag, vibration, destroy, wrong password, low battery with anti-false alarm algorithm. |
| • | Device can be reused many times, can be unlocked by magnetic card on-site or unlocked remotely at center over the network. |
Technical Specifications

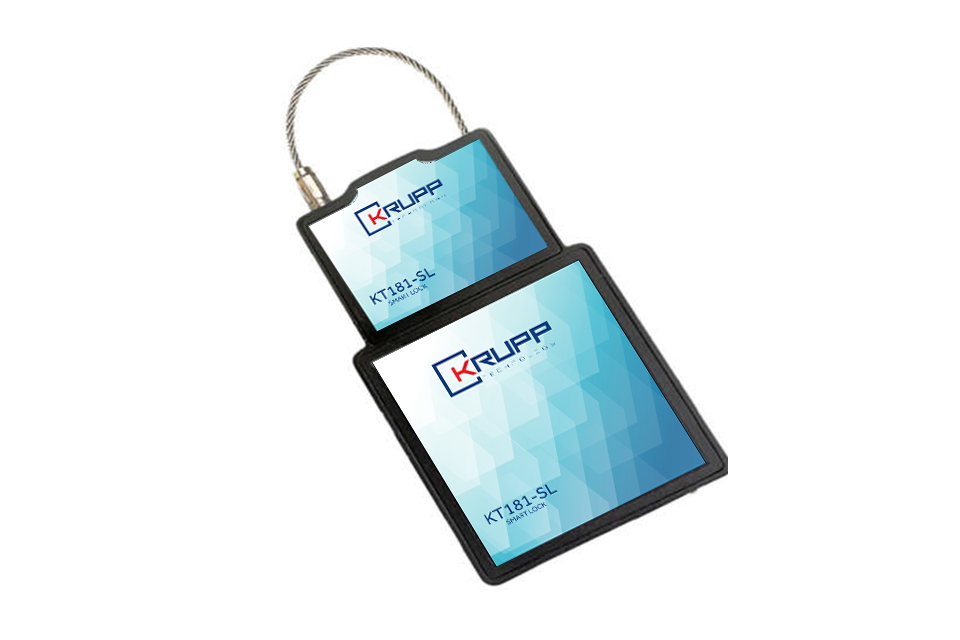

| Model Number | Smart Lock KT181-SL (GPS Tracking) |
| Physical | Size (L x W x D): 195mm x 114mm x 37mm Standard Cable Length: 300mm Weight: 1113 gram Color: Black |
| GSM/GPRS | Bands: Quad Band (850/900/1800/1900 MHz, LTE) SIM: Dual-SIM slots (Primary & Secondary) |
| GPS | Channel: 56 Antenna: Built-In GPS Patch Antenna Tracking Sensitivity: -160 dBm Accuracy: 2.5 meter (CEP), Velocity: 0.1 m/s Optional: Extended Ephemeris A-GPS |
| Accelerometer | Type: 3-Axis, 20 mg accuracy, up to 8g Accuracy: ± 2.5% |
| Electrical | Battery: Lithium-Ion (Built-in, Rechargeable), 3.7V, 15,000 mAh Current Drain: Active 240mA / Inactive 0.3mA Battery Life: Up to 7 days (1 report/30s) or 20 days (1 report/5 min) Indicator: 4 LED status (GPS, GSM/GPRS, Charging, Low Battery), 1 piezo buzzer |
| Cable Break Load | 100 kg |
| COMM Port | 01 Port RS232, 01 Micro USB |
| Environmental | Operating Temp: -20°C ~ +60°C Storage Temp: -40°C ~ +80°C Humidity: 95% non-condensing Weatherproofing: IP67 |
