Part number: VTS10
Krupp Technology's image surveillance technology is becoming increasingly advanced and widely applied worldwide, standing out with its product quality and diverse functionalities. The integration of AI in the development of recognition and image surveillance technology has significantly enhanced the superiority of all Krupp Technology's current products.

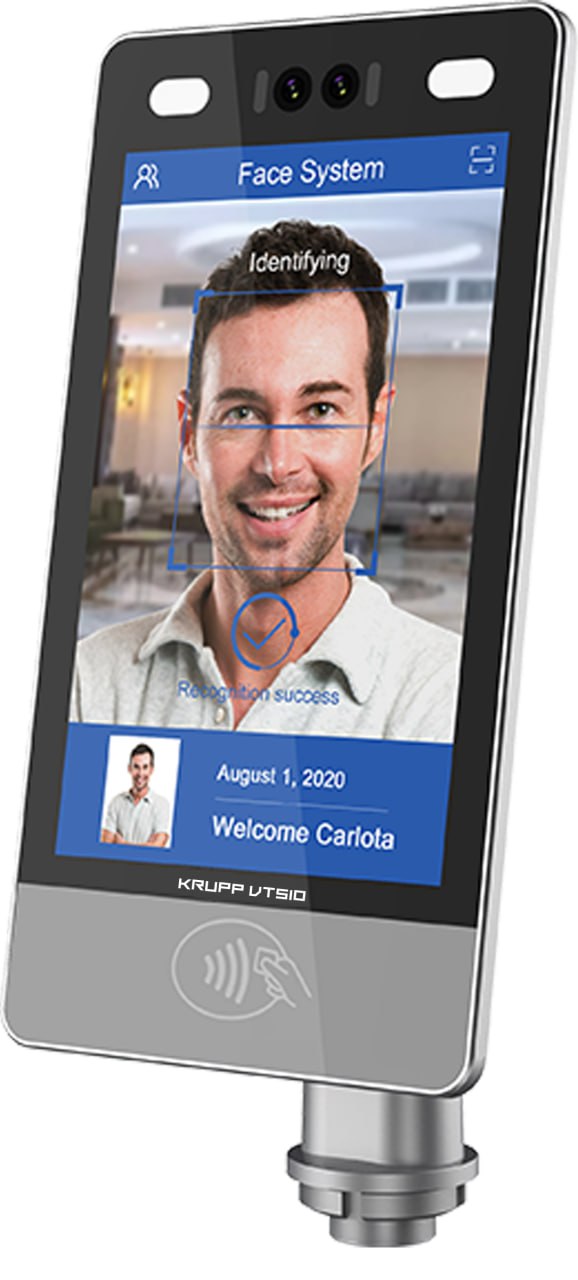

The VeriTrusted System VTS10 10-inch customized all-in-one machine can be embedded with various face recognition modules, offering greater flexibility for creative combinations and enhanced compatibility.
The product incorporates an integrated guidance light system, enhancing visual harmony in the overall design while delivering more prominent directional indicators
OS | Android 11 |
Dimensions(mm) | 350(L)*200(W)*60(H) |
Processor | CX3399-A: Up to 64-bit high-performance CPU, 1.8GHz; 1. dual Cortex-A72 large core+quad Cortex-A53 small core 64-bit CPU |
Memory | 4GB RAM, 64GB ROM eMMC |
Front Camera | Dual-lens (RGB+IR), 2MP + 1MP |
Liveness Camera | HID U.ARE.U Camera Identification System |
Network Support | 4G, Ethernet, support WiFi/Bluetooth 5.0, wireless peripheral expansion |
USB interface | 1 - way USB3.0 OTG |
1 - way USB2.0 | |
5 - way USB2.0 socket | |
Serial port | 6 serial port sockets (2-way RS232, 1-way 485, 2-way TTL, 1 - way DEBUG) |
Power Supply | 12v DC |
Serial port(optional) | Wall Mount Bracket, Turnstile Mount Bracket |
Audio | Digital audio speaker (External horn connection) |
Environmental | Operation temperature: -20℃~55℃ |
Display Size | 10.1inches, anti-glare |
Resolution | 800x1280 |
Contrast Ratio | 800:01:00 |
Brightness | 400 nits |
Active Area | 216.96 (H) X 135.60 (V) |
Panel Material | Tempered Glass |
Facial Recognition and Liveness Detection Features | |
Camera Sensing | • Multi-Spectral RGB-IR Day/Night Sensing |
Technology | • Active Structured 3D Depth Projector with 2D Flood Illuminator @ 940 nm |
Image Sensor | • 8 MP 1.4 micro m NIR Enhanced BSI Technology |
• Full HD Video Outputs (1920x1080, 3x Streams Visible, NIR, Depth) | |
Modalities | • Enroll and Match on Device |
• 1:1 and 1: N Authentication On Device | |
• Passive HD Video Surveillance (UVC over USB or MJPEG over Ethernet) | |
• Continuous Face Recognition @10 fps with PAD Authentication @4 fps | |
• Multi-Face Logic Support | |
Ambient Lighting | • 0-20 Klx (NIR) |
• 2-10 Klx (RGB) | |
Working Distance | • 20-150 cm / 7.87-59 in. (Face Recognition) |
• 40-100 cm / 15.75-39.37 in. (Face Recognition with PAD enabled) | |
Face Recognition Performance | User Configurable FMR 1e-4, 1e-5, 1e-6 |
Field of View (camera mounting dependent) | Portrait Mode 76° V x 36° H |
On-board Database Capacity | 0-100K facial templates for 1:1 or 1: N matching |
Supported Formats | PNG, JPG |
Optional Solution Components | • U.ARE.U Face SDKs |
• ArcID Biometric Server | |
• ArcID ID Proofing Server | |
• ArcID Device Manager | |
• Biometric Professional Services | |
Presentation Attack Detection | ISO 30107-3 Level 1 (Level 2 expected 2025) |
Certifications | CE, UKCA, FCC, RoHS, WEEE, UL, CB, IEC 60825-1 1, IEC 61000-4-2 Level 3 |
Security Features | • Secure Boot |
• Secure Key Storage | |
• Mutual Authentication | |
• Cipher Suites for Template/Channel Encryption including AES, TDES, etc. | |
• Secure Firmware Updates | |
