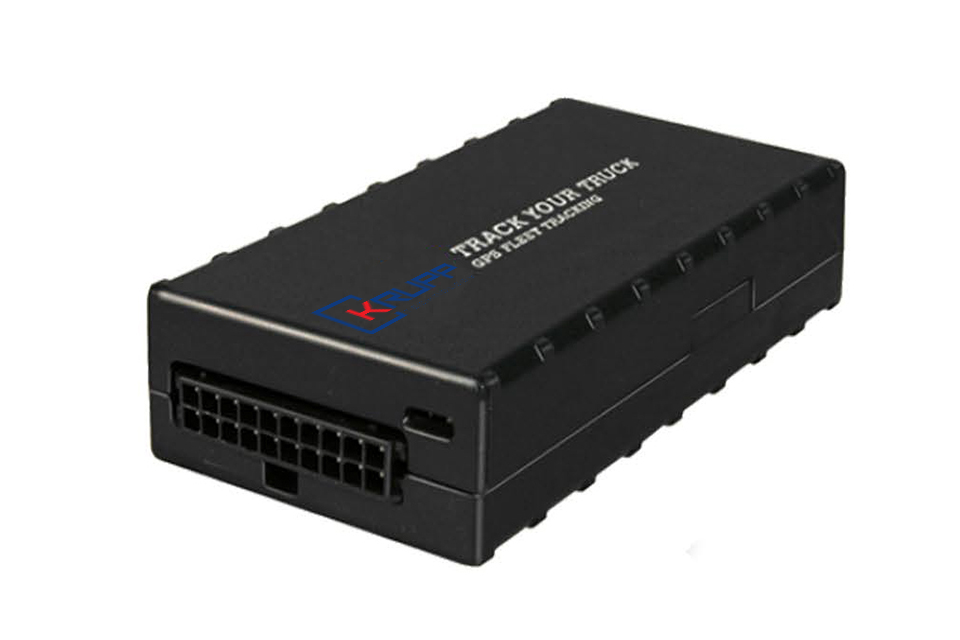

Sophisticated tracking and monitoring device
Advanced-NG is designedto respond to a wide range of tracking and asset tracking application. This tracking devices benefits from the highest qualitycomponents and ensures maximum reliability and a very long life-cycle. The new ISM900communication interface is powering the advanced featuresfor Active RFID applications.
KEY FEATURES:
- Tracks real-time vehicle location, speed and heading 24/7
- Tracks real-time vehicle location, speed and heading 24/7.
- Internal antennas and battery backup in case of driver tampering or stolen vehicle.
- Starter Disable - remotely disables vehicle ignition
- Monitor Driver Behavior-built-in accelerometer for detecting harsh driving including braking, jack-rabbit starts, and cornering
- Driver ID - allows driver validation using Dallas ID key fob
Advanced-NG - Main Specifications
CPU
| Type
Memory
| ST ARM Cortex-M3
Static RAM 128kb
ROM: 34 kb
|
Power
| Power Voltage Range
Consumption
| 8v-36v (supported in same unit)
3mA in low power mode
up to 120mA in working mode
can reach up to 300mA if battery is charged
|
Cellular
Communication
| GSM/GPRS - default
Optional Modems
Antenna type
Data channels
Protocol
| Quad Band (850, 900, 1800, 1900) UMTS/HSPA+, CDMAl1xRTT/EV-DO,
Built-in (concealed)
SMS & TCP/IP
Propriety - encrypted
|
Location
| Type
Positioning Accuracy
Antenna type
| GPS, GLONASS (optional)
2.5m CEP (50%)
rvelocity: 0.2m/s (50%)
Built in (concealed)
|
COMM Port
| Type
Speed
| RS232
115,200bps (default)
|
I/0s
| Digital Inputs Digital Outputs Analog Inputs Pulses Counter CANBUS
| Max8
Max4
Max3
Max 1
Included
|
Accelerometer
| Type
Purpose
| 3-Axis, 20 mg accuracy, up to 8g
Identify and report events of impact and
accident
|
Alarm System
| Immobilizer
Disarming Options
| External - Gradual Stop
Key Pad, Dallas Key, Remote Control, RF Keypad
|
Dimensions
| Size
Weight
| 22H x 51W x 102L (mm)
150 (grams) 5.29 (Oz)
|
Environmental
| Operating Temp Storage Temp Humidity
| -40°C (-40°F) to +60°C (140°F)
-40°C (-40°F) to +85°C (185°F)
Max 90%
|
