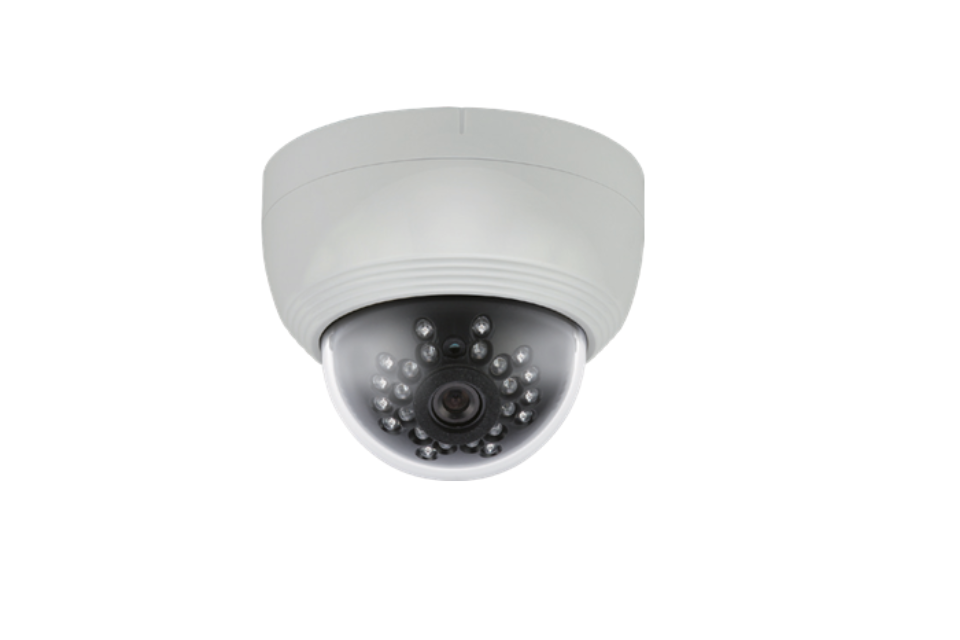

Powerful 1/2.8" 3.23Mega pixel RGB Bayer Array CMOS Sensor for crystal-clear imaging.

Pixel count of 2048(H) x 1536(V), approximately 3.15Mega pixels, delivering sharp and detailed visuals that capture every nuance of the scene.

Designed for day and night monitoring, our camera comes with a built-in array of 24pcs 850nm IR LEDs, enabling reliable performance in low-light conditions. The ONVIF Profile S compatibility ensures seamless integration into your existing security infrastructure, facilitating interoperability with various devices and systems.

For versatile video streaming and storage options, our camera supports H.264 (High, Main, Base line profile) and MJPEG compression, offering flexible choices for different bandwidth and storage requirements. Choose from a range of video resolutions, including 2048x1536, 1920x1440, 1920x1080, and more, up to a smooth frame rate of 30fps@2048x1536p, ensuring real-time monitoring with exceptional clarity.

Whether powered through PoE (IEEE Std. 802.3af) or DC12V, our camera adapts to your power preferences. Operating seamlessly in temperatures ranging from -10°C to +50°C and humidity levels between 20%RH to 80%RH, it's designed to withstand diverse environmental conditions.

(*) Design and specifications are subject to change for product improvements without prior notice

Imaging Sensor

1/2.8" 3.23Mega pixel RGB Bayer Array CMOS Sensor.


2048(H) x 1536(V) approx. 3.15Mega pixels.


F= 3.6mm F2.3 Mega pixel Fixed lens


Built-in 24pcs 850nm IR LED


Profile S


Double-side anti-scratch

Optimized cooling

Video Compression

H.264 (High, Main, Base line profile) MJPEG

Video Resolution

2048x1536, 1920x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 800x600, 640x480, 640x360, 320x240

Video Frame Rate

Up to 30fps@2048x1536p


PoE (IEEE Std. 802.3af), DC12V.

Operating condition

-10°C ~ +50°C (Humidity : 20%RH ~ 80%RH)
