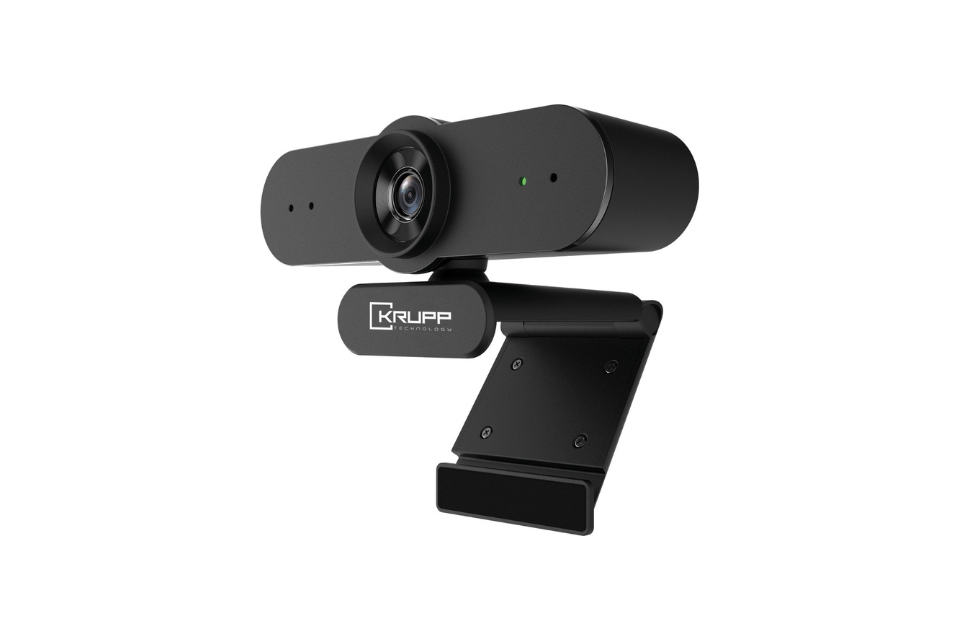

KT-IDC32

KT-IDC32 is a 1080P, equivalent to 1920 x 1080 pixels, HD USB camera that provides a professional quality video and audio experience for users.

It not only equips with best-in-class camera whose hozizontal field of view is up to 84.5°,  but also integrates built-in omnidirectional microphone  that can clearly pick up audio from up to 3 meters away. KT-lDC32 can work with mainstream video conferencing platforms, providing high compatibility and seamless integration for people in both business and life scenarios.

  •    -  Max.25/30fps@1080P
  •    -  Digital zoom 3x
  •    Built-in microphone, 3 meters pickup distance
  •     USB connection & easy operation
  •    UVC protocol & high compatibility



Technical Specification

Camera

Sensor Type

1/2.8 inch CMOS,2M pixel

Video Format

1080p@30fps/25fps, 720p@30fps/25fps,
480P@30fps/25fps, 320x240p@30fps/25fps

Compression

H.265/H.264/MJPEG/YUV

UVC Protocol

UVC Protocol

Focal Length

3.0 mm±5%

Horizontal Field of View

84.5°

Exposure

Auto, BLC/HLC

Shutter Speed

1/30s ̴ 1/1000s

Digital Noise Reduction

2D & 3D Digital Noise Reduction

SNR

≥38dB

White Balance

Auto

Microphone

Position

Position

Pickup Distance

Omnidirectional, Pickup Distance Up to 3m

General

Video Interface

1 * USB2.O

Working Status Indicator

Power-on/Power-off



Privacy Shade

Support

Power Supply

USB 5V

Input Current

200mA

Power Consumption

Max 1W

Working Temperature

0° ̴ + 60°

Working Humidity

< 95% (Noncondensing)

MTBF

30000H

System Requirements

OS



Windows@ 7 , Windows 8.1, Windows 10 or Higher

macOSTM 10.10 or Higher

GoogleTM ChromebookTM Version 29.0.1547.70 or

Higher

Linu x (UVC Protocol Required)

Hardware



2.4 GHz Intel@ Core 2 Duo CPU or Higher

2 GB Memory or Higher

USB 2.0 Interface
