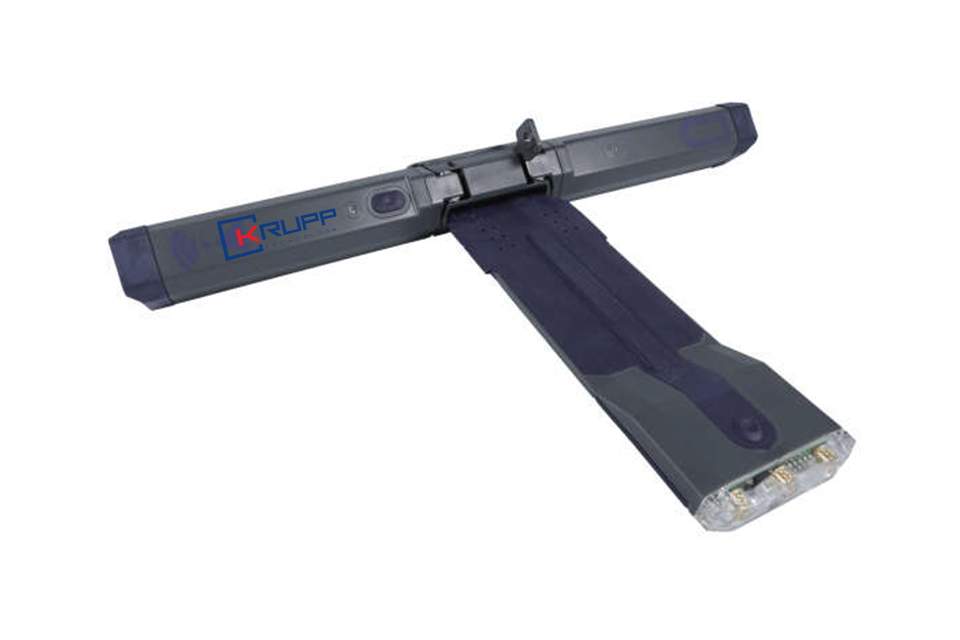

GLOBAL TRACK KT180-GT

Complete Container Management Solution, Everywhere Around the Globe

Hybrid Container Management Solution

Hybrid is the ideal solution to ensure safe delivery and maintain the condition of your cargo, from the moment the container is sealed until it’s opened when reaching its destination.

Thanks to a combined cellular and Iridium satellite connectivity - your cargo is monitored anywhere around the globe in real-time.

Hybrid provides you with real-time alerts in any irregular event, ensuring your cargo’s safety and quality.

KEY FEATURES

Monitors location, impact, container loss and theft.
Easy installation on container’s door hinge. Cellular engine (3G), GPS/GLONASS, and built-in Iridium satellite antenna which pinpoint exactly location and monitor any deviation from route.
Temperature and light detectors detect deviation from temperature and humidity ranges - in real time.
Provides an immediate alert with any irregular event: accident, damage, attempted break-in and unauthorized container door opening.

HYBRID - Main Specifications

Model NumberHybrid (GPS Tracking)
PhysicalL x W x D: 400mm x 250mm x 40mm
Weight: 920gram
Color: Black
GSM/GPRSBands: GSM/GPRS/EDGE Quad Band (850/900/1800/1900 MHz, LTE)
Antenna: Built-in antennas for GSM
Network: Auto switch network connection GSM to Satellite
SatelliteCommunication: Iridium
Network & Antenna: Built-in antennas for Iridium Satellite network. Auto switch network connection Satellite to GSM.
GPSChannel: 66
Antenna: Built-In GPS Patch Antenna
Tracking Sensitivity: -160 dBm
Location Accuracy: 10 meter (CEP)
Velocity Accuracy: 0.2 m/s
ElectricalBattery Type: Lithium-Ion (Built-in, Rechargeable)
Capacity: 3.7V, 4500 mAh (main unit), 2600 mAh (Satellite unit)
Sensors

Temperature Range: -45°C to +125°C
Temperature Accuracy: ± 0.2°C



Relative Humidity Scale: 0% to 100%
Humidity Accuracy: ± 1.8%



Accelerometer Range: + 8g
Accelerometer Accuracy: ± 2.5%



Light Sensitivity: 0.025 LUX
Light Resolution: 0 - 104,448 LUX (Sunlight)

EnvironmentalOperating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity: 90% non-condensing
Weather proofing: IP65
