Data Logger, for Fleet Management, Vehicle Protection, GSM
KEY FEATURES
| • | Track on Demand |
| • | Supports GSM / WCDMA communication |
| • | Data Logger |
| • | Geo-Fencing control |
| • | Movement and Speed Alert |
| • | Stop the Engine |

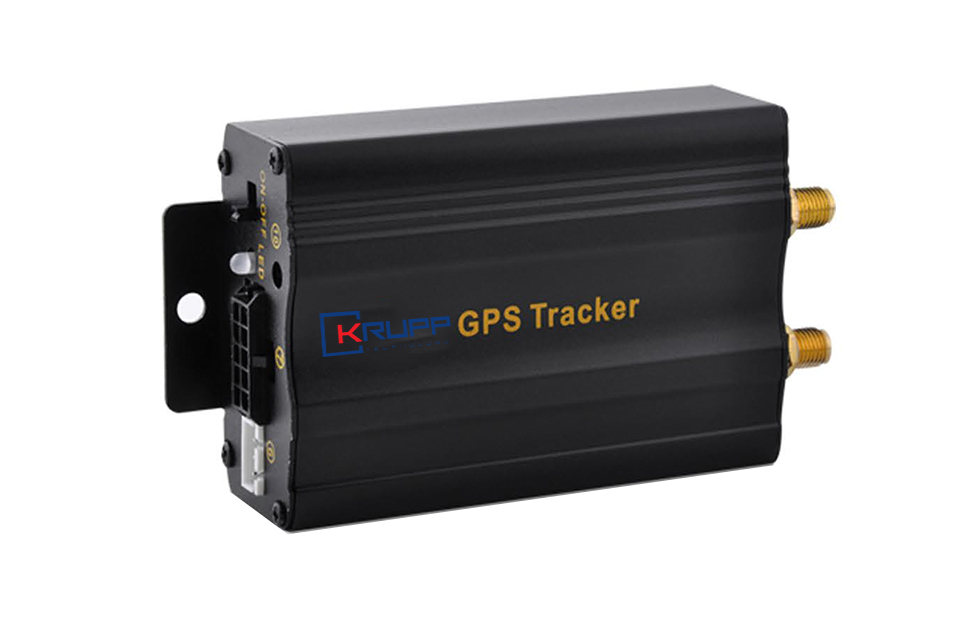

NG GPS Tracking Unit – Main Specifications
| CPU & Memory | Type: ST ARM Cortex-M4 Memory: Static RAM 256kb ROM: 1MB |
| Power | Voltage Range: 8v-36v (supported in same unit) Consumption: - 3mA in low power mode - Up to 120mA in working mode - Can reach up to 300mA if battery is charged |
| Cellular Communication | GSM/GPRS (Default): Quad Band (850, 900, 1800, 1900) Optional Modems: UMTS/HSPA+, CDMA/1xRTT/EV-DO, LTE Antenna Type: Built-in (concealed) Data Channels: SMS & TCP/IP Protocol: Propriety – encrypted |
| Location | Type: GPS, GLONASS (optional) Time to First Fix (TTFF): 1 sec (hot start) Positioning Accuracy: 2.5m CEP (50%) Velocity Accuracy: 0.2m/s (50%) Antenna Type: Built-in (concealed) |
| COMM Port | Type: RS232 Speed: 115, 200bps (Default) |
| I/Os | Digital Inputs: Max 8 Digital Outputs: Max 4 Analog Inputs: Max 3 Pulses Counter: Max 1 CANBUS: Included |
| Accelerometer | Type: 3-Axis, 20 mg accuracy, up to 8g Purpose: Identify and report events of impact and accident |
| Alarm System | Immobilizer Disarming Options: - External – Gradual Stop - Key Pad, Dallas Key, Remote Control, RF Keypad |
| Dimensions | Size: 24(H) x 54(W) x 105(L) mm Weight: 180 grams |
| Environmental | Operating Temp: -40°C (-40°F) to +60°C (140°F) Storage Temp: -40°C (-40°F) to +85°C (185°F) Humidity: Max 90% |
