The ideal container tracking and monitoring solution for your cargo

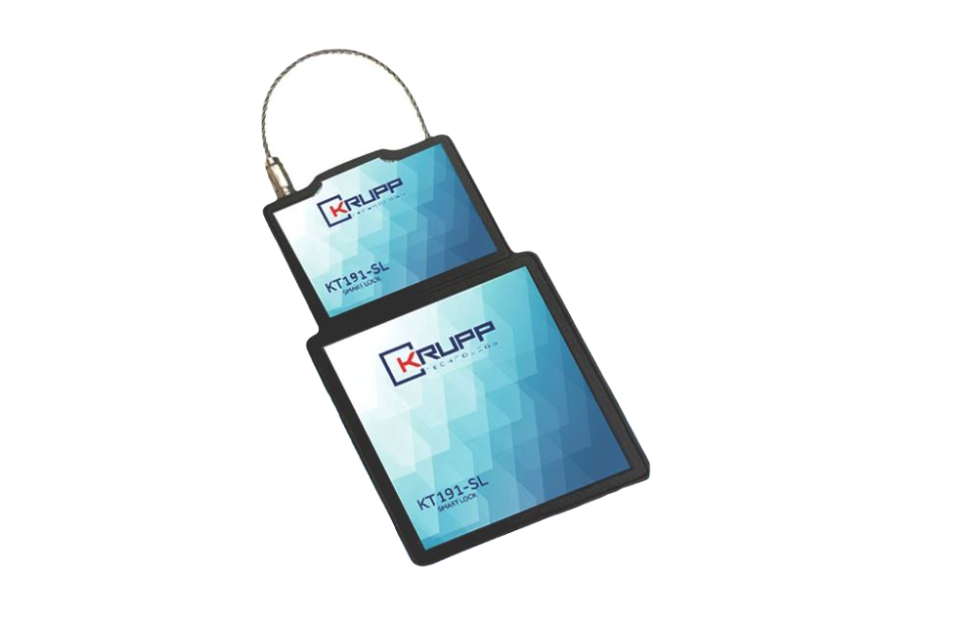

Smart Lock KT191-SL is a creative innovation for tracking intermodal containers and conveyances using active RFID, GPRS, GPS, 4G, 3G
More than just a simplistic inspection system, Smart Lock KT191-SL provides security-tampering sensor. Smart Lock KT191-SL enables shippers, carriers and logistics service providers to actively monitor the security and integrity of shipments as their containers move throughout the global supply chain.
Smart Lock KT191-SL periodically reports security and environmental status via GSM infrastructure to a hosted web-base supply chain security and location visibility system.
KEY FEATURES:
- Soft cable locking mechanism.
- Strong magnetic applications make it easy to attach to steel containers
and avoid vibration.
- GPS and GSM chips are embedded for location and communication
capabilities.
- Powered by rechargeable lithium batteries which are capable of lasting
up to 21 days.
- Material: Engineer plastic (anti-collision).
- Supports 9 alarms: steel string cut, swipe RFID tag, vibration, destroy,
wrong password, low battery with anti-false alarm algorithm.
- Device can be reused many times, can be unlocked by magnetic card on-site or unlocked remotely at center over the network
SMART LOCK KT191-SL - Main Specifications
| Smart Lock KT191-SL
| GPS Tracking
|
Physical
| L x W x D
| 195mm x 114 mm x 37 mm
|
| Stan14dard Cable Length
| 350mm
|
| Weight
| 1100g (Including standard accessories)
|
| Color
| Black
|
| Material
| Engineering Plastic
|
GSM/GPRS
| Bands
| TDD-LTE B38/B40/B41
|
| SIM
| Dual - SIM slots (Support two Micro - SIM cards, dual card single standby mode)
|
GPS
| Channel
| 56
|
| Antenna
| Built-in, GNSS/Cellular antenna
|
| Tracking Sensitivity
| -160dBM
|
| Location accuracy
| 2,5 meter (CEP)
|
| Velocity accuracy
| 0.1 m/s
|
Accelerometer
| Acceleration sensor
| Motion and vibration detection
|
| Type
| 3-Axis, 20 mg accuracy, up to 8g
|
| Accuracy
| +- 2,5 %
|
Electrical
| Battery
| Lithium battery 15000mAH (Rechargeable, built-in)
DC 5V/2A charging
|
| Active Current Drain
| 240mA
|
| Inactive Current Drain
| 0.3mA
|
|
| Battery capacity with up to 10 days with tracking mode per 30 seconds or up to 21 days with tracking mode per 60 seconds
|
| Indicator
| 4 LED status (GPS location status, Network communication, Low power battery, Battery Charging)
|
Cable
| Break Load
| 150kg
|
COMM port
| Type
| 01 Port RS232, 01 Micro USB
|
Environmental
| Operating Temperature
| -20°C to 60°C
|
| Storage Temperature
| -40°C to 80°C
|
| Humidity
| 5% to 95%
|
| Weatherproofing
| IP68
|
